Infineon Technologies IRFI4212H-117P

MOSFET 2N-CH 100V 11A TO-220FP-5

Mosfet Array 2 N-Channel (Dual) 100V 11A 18W Through Hole TO-220-5 Full-Pak

IRFI4212H-117P
Üretici
Infineon Technologies
Üretici Parça Numarası
Entegreci Parça Kodu

Veri Dosyaları

Teknik Özellikler

FET Type
2 N-Channel (Dual)
FET Feature
Standard
Drain to Source Voltage (Vdss)
100V
Current - Continuous Drain (Id) @ 25°C
11A
Rds On (Max) @ Id, Vgs
72.5mOhm @ 6.6A, 10V
Vgs(th) (Max) @ Id
5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds
490pF @ 50V
Power - Max
18W
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Through Hole

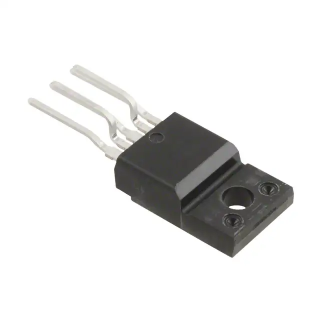

Package / Case
TO-220-5 Full Pack
Supplier Device Package
TO-220-5 Full Pack
