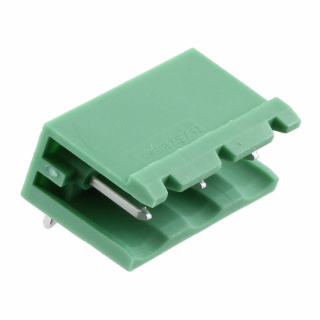

Phoenix Contact 1766136
TERM BLOCK HDR 3POS 90DEG 7.62MM
3 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole
- Üretici
- Phoenix Contact
- Üretici Parça Numarası
- Entegreci Parça Kodu
- Ürün Serisi
- COMBICON GMSTB
Datasheet ve Belgeler
Teknik Özellikler
- Type
- Header, Male Pins, Shrouded (2 Side)
- Number of Positions
- 3
- Positions Per Level
- 3
- Number of Levels
- 1
- Pitch
- 0.300" (7.62mm)
- Header Orientation
- 90°, Right Angle
- Termination Style
- Solder
- Mounting Type
- Through Hole
- Current - IEC
- 12A
- Voltage - IEC
- 630V
- Current - UL
- 15A
- Voltage - UL
- 300V
- Color
- Green
- Contact Mating Finish
- Tin
- Material Flammability Rating
- UL94 V-0
- Housing Material
- Polyamide (PA), Nylon
