- Üretici
- Nexperia USA Inc.
- Üretici Ürün Kodu
- PDTC143ET,215
- Entegreci Kodu
- EE02055-1
- İşaret Kodu
- *02
Nexperia USA Inc. PDTC143ET,215
TRANS PREBIAS NPN 50V TO236AB
Ürün Bilgileri
Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 250 mW Surface Mount TO-236AB
- Üretici
- Nexperia USA Inc.
- Transistor Type
- NPN – Pre-Biased
- Current - Collector (Ic) (Max)
- 100 mA
- Voltage - Collector Emitter Breakdown (Max)
- 50 V
- Resistor - Base (R1)
- 4.7 kOhms
- Resistor - Emitter Base (R2)
- 4.7 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce
- 30 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic
- 150mV @ 500µA, 10mA
- Current - Collector Cutoff (Max)
- 1µA
- Power - Max
- 250 mW
- Mounting Type
- Surface Mount

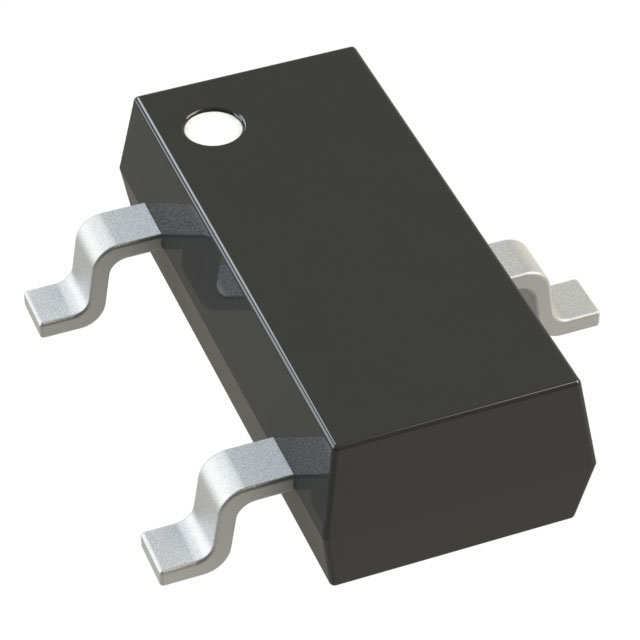

- Package / Case
- TO-236-3, SC-59, SOT-23-3
- Supplier Device Package
- TO-236AB
- Base Part Number
- PDTC143
- Device Marking Code
- *02
