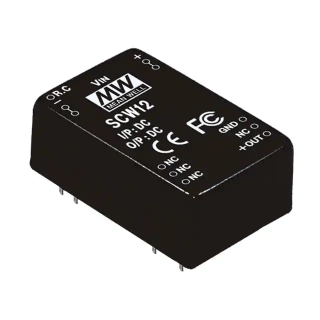

MEAN WELL SCW12B-05

DC DC CONVERTER 5V 12W

Isolated Module DC DC Converter 1 Output 5V 2.4A 18V - 36V Input

Üretici
MEAN WELL
Üretici Parça Numarası
Entegreci Parça Kodu
Ürün Serisi
SCW12 (12W)
RoHS
Uyumlu
Paketleme
Tube

Datasheet ve Belgeler

Teknik Özellikler

Type
Isolated Module
Number of Outputs
1
Voltage - Input (Min)
18V
Voltage - Input (Max)
36V
Voltage - Output 1
5V
Current - Output (Max)
2.4A
Power (Watts)
12W
Voltage - Isolation
1500V
Applications
ITE (Commercial)
Features
Remote On/Off, OCP, SCP
Operating Temperature
-25°C ~ 71°C (With Derating)
Efficiency
83%
Mounting Type
Through Hole
Package / Case
24-DIP Module, 9 Leads
Size / Dimension
1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Control Features
Enable, Active High
Paketleme Şekli
Tube
