Toshiba Semiconductor and Storage TLP701(F)

OPTOISO 5KV GATE DRIVER 6SDIP GW

600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing

Üretici
Toshiba Semiconductor and Storage
Üretici Parça Numarası
Entegreci Parça Kodu
Paketleme
Tube

Datasheet ve Belgeler

Teknik Özellikler

Technology
Optical Coupling
Number of Channels
1
Voltage - Isolation
5000Vrms
Common Mode Transient Immunity (Min)
10kV/µs
Propagation Delay tpLH / tpHL (Max)
700ns, 700ns
Rise / Fall Time (Typ)
50ns, 50ns
Current - Output High, Low
400mA, 400mA
Current - Peak Output
600mA
Voltage - Forward (Vf) (Typ)
1.55V
Current - DC Forward (If) (Max)
20mA
Voltage - Supply
10V ~ 30V
Operating Temperature
-40°C ~ 100°C
Mounting Type
Surface Mount

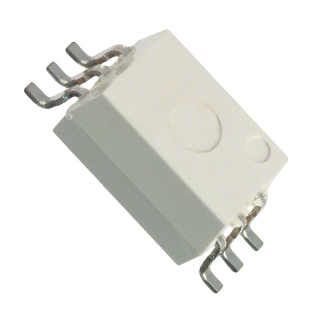

Package / Case
6-SOIC (0.268", 6.80mm Width)
Supplier Device Package
6-SDIP Gull Wing
Approvals
cUL, UL
Refurbished
Yes
Paketleme Şekli
Tube
