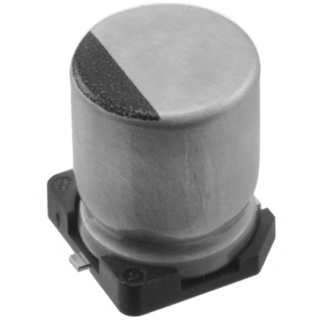

Honor Elec RVT1H101M0810
CAP ALUM SMD 105C 100UF 50VDC
100µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
- Üretici
- Honor Elec
- Üretici Parça Numarası
- Entegreci Parça Kodu
- Ürün Serisi
- RVT
- Paketleme
- Cut Tape (CT)
Datasheet ve Belgeler
Teknik Özellikler
- Capacitance
- 100µF
- Tolerance
- ±20%
- Voltage - Rated
- 50V
- Lifetime @ Temp.
- 2000 Hrs @ 105°C
- -40°C ~ 105°C
- Polarization
- Polar
- Applications
- General Purpose
- Ripple Current @ Low Frequency
- 140mA @ 120Hz
- Ripple Current @ High Frequency
- 221mA @ 10kHz
- Size / Dimension
- 0.315" Dia (8.00mm)
- Height - Seated (Max)
- 0.413" (10.50mm)
- Surface Mount Land Size
- 0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can – SMD
- Paketleme Şekli
- Cut Tape (CT)
- Paket Miktarı
- 500
