Renesas Electronics America Inc. IRFF210

Teknik Özellikler

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

200V

Current - Continuous Drain (Id) @ 25°C

2.2A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

1.5Ohm @ 1.25A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

7.5nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

135pF @ 25V

Power Dissipation (Max)

15W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

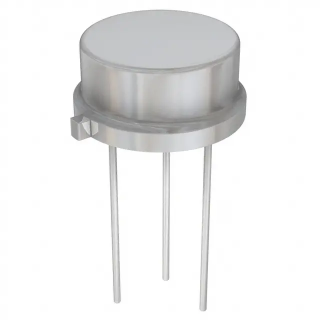

Package / Case

TO-205AF Metal Can

Supplier Device Package

TO-205AF
