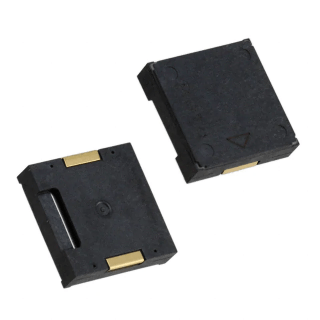

Murata Electronics PKLCS1212E4001-R1

AUDIO PIEZO TRANSDUCER 25V SMD

Buzzers Transducer, Externally Driven Piezo 1.5V 4kHz 84dB @ 1.5V, 10cm Surface Mount Solder Pads

PKLCS1212E4001-R1
Üretici
Murata Electronics
Üretici Parça Numarası
Entegreci Parça Kodu
Ürün Serisi
PK
RoHS
Uyumlu

Veri Dosyaları

Teknik Özellikler

Driver Circuitry
Transducer, Externally Driven
Input Type
Zero-Peak Signal
Voltage - Rated
1.5V
Voltage Range
25V (Max)
Frequency
4kHz
Technology
Piezo
Operating Mode
Single Tone
Sound Pressure Level (SPL)
84dB @ 1.5V, 10cm
Port Location
Side
Operating Temperature
-20°C ~ 70°C
Mounting Type
Surface Mount
Termination
Solder Pads
Size / Dimension
0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)
0.118" (3.00mm)
Base Part Number
PKLCS12
