Üretici
Littelfuse Inc.
Üretici Ürün Kodu
RUEF300K
Entegreci Kodu
EE00317-2
Ürün Serisi
PolySwitch®, RUEF

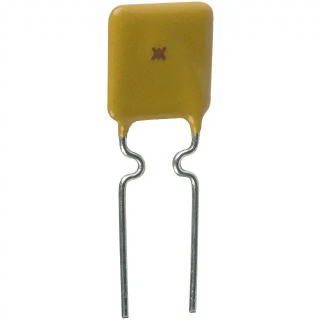

Littelfuse Inc. RUEF300K, PTC RESET FUSE 30V 3A RADIAL

Polymeric PTC Resettable Fuse 30V 3A Ih Through Hole Radial, Disc

Ürün Bilgileri(ROHS Uyumlu)

Üretici
Littelfuse Inc.
Current - Trip (It)
6A
Series
PolySwitch®, RUEF
Rohs
Uyumlu
Type
Polymeric
Voltage - Max
30V
Current - Max
100A
Current - Hold (Ih) (Max)
3A
Resistance - Initial (Ri) (Min)
20 mOhms
Time to Trip
10.8s
Resistance - Post Trip (R1) (Max)
80 mOhms
Operating Temperature
-40°C ~ 85°C
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.449" L x 0.118" W (11.40mm x 3.00mm)
Height - Seated (Max)
0.710" (18.03mm)
Lead Spacing
0.199" (5.05mm)
Stok Miktarı
50
adet stokta
Fiyat
Min. 1 adet
3.44  KDV Dahil
Miktar
Ürün Etiketleri: ,
