- Üretici
- STMicroelectronics
- Üretici Ürün Kodu
- STB33N60DM2
- Entegreci Kodu
- EE02475
- Ürün Serisi
- MDmesh™ DM2
- İşaret Kodu
- 33N60DM2
STMicroelectronics STB33N60DM2
MOSFET N-CH 600V 24A
Ürün Bilgileri

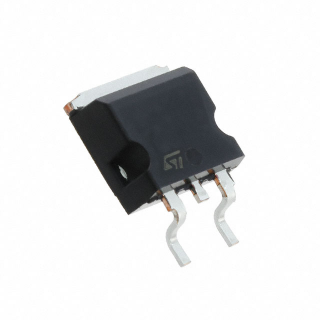

N-Channel 600V 24A (Tc) 190W (Tc) Surface Mount D2PAK
- Üretici
- STMicroelectronics
- FET Type
- N-Channel
- Technology
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)
- 600V
- Current - Continuous Drain (Id) @ 25°C
- 24A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)
- 10V
- Rds On (Max) @ Id, Vgs
- 130mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id
- 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs
- 43nC @ 10V
- Vgs (Max)
- ±25V
- Input Capacitance (Ciss) (Max) @ Vds
- 1870pF @ 100V
- Power Dissipation (Max)
- 190W (Tc)
- -55°C ~ 150°C (TJ)
- Mounting Type
- Surface Mount
- Package / Case
- TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package
- D2PAK
- Base Part Number
- STB33N
- Series
- MDmesh™ DM2
- Device Marking Code
- 33N60DM2
Veri Dosyaları
