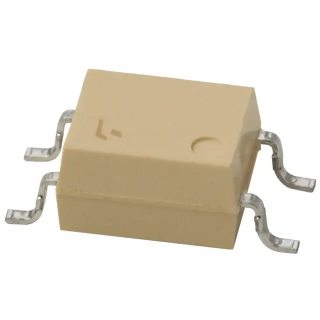

Toshiba Semiconductor and Storage TLP124(BV-TPR,F)
OPTOISOLTR 3.75KV TRANS 6-MFSOP
Optoisolator Transistor Output 3750Vrms 1 Channel 6-MFSOP, 4 Lead
- Üretici
- Toshiba Semiconductor and Storage
- Üretici Parça Numarası
- Entegreci Parça Kodu
- Paketleme
- Cut Tape (CT)
Datasheet ve Belgeler
Teknik Özellikler
- Number of Channels
- 1
- Voltage - Isolation
- 3750Vrms
- Current Transfer Ratio (Min)
- 200% @ 1mA
- Current Transfer Ratio (Max)
- 1200% @ 1mA
- Turn On / Turn Off Time (Typ)
- 10µs, 8µs
- Rise / Fall Time (Typ)
- 8µs, 8µs
- Input Type
- DC
- Output Type
- Transistor
- Voltage - Output (Max)
- 80V
- Current - Output / Channel
- 50mA
- Voltage - Forward (Vf) (Typ)
- 1.15V
- Current - DC Forward (If) (Max)
- 50mA
- Vce Saturation (Max)
- 400mV
- -55°C ~ 100°C
- Mounting Type
- Surface Mount
- Package / Case
- 6-SMD (4 Leads), Gull Wing
- Supplier Device Package
- 6-MFSOP, 4 Lead
- Paketleme Şekli
- Cut Tape (CT)
