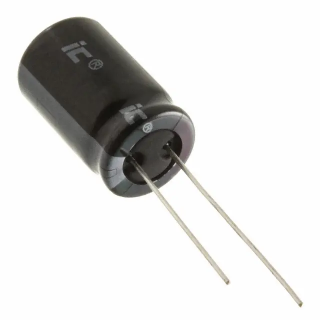

Illinois Capacitor 687LSR063M
CAP ALUM 680UF 20% 63V RADIAL
680µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
- Üretici
- Illinois Capacitor
- Üretici Parça Numarası
- Entegreci Parça Kodu
- Ürün Serisi
- LSR
Datasheet ve Belgeler
Teknik Özellikler
- Capacitance
- 680µF
- Tolerance
- ±20%
- Voltage - Rated
- 63V
- ESR (Equivalent Series Resistance)
- 220mOhm @ 120Hz
- Lifetime @ Temp.
- 5000 Hrs @ 105°C
- -55°C ~ 105°C
- Polarization
- Polar
- Applications
- General Purpose
- Ripple Current @ Low Frequency
- 1.7A @ 120Hz
- Ripple Current @ High Frequency
- 2.05A @ 100kHz
- Impedance
- 32 mOhms
- Lead Spacing
- 0.295" (7.50mm)
- Size / Dimension
- 0.630" Dia (16.00mm)
- Height - Seated (Max)
- 1.240" (31.50mm)
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
