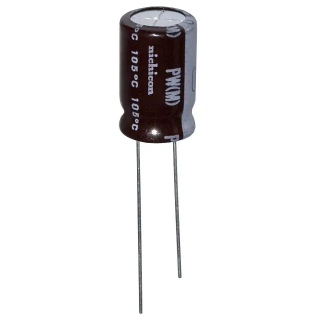

Nichicon UPW1H221MPD
CAP ALUM 220UF 20% 50V RADIAL
220µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
- Üretici
- Nichicon
- Üretici Parça Numarası
- Entegreci Parça Kodu
- Ürün Serisi
- UPW
- RoHS
- Uyumlu
- Paketleme
- Bulk
Datasheet ve Belgeler
Teknik Özellikler
- Capacitance
- 220µF
- Tolerance
- ±20%
- Voltage - Rated
- 50V
- Lifetime @ Temp.
- 5000 Hrs @ 105°C
- -55°C ~ 105°C
- Polarization
- Polar
- Applications
- General Purpose
- Ripple Current @ Low Frequency
- 552.5mA @ 120Hz
- Ripple Current @ High Frequency
- 850mA @ 100kHz
- Impedance
- 119 mOhms
- Lead Spacing
- 0.197" (5.00mm)
- Size / Dimension
- 0.394" Dia (10.00mm)
- Height - Seated (Max)
- 0.630" (16.00mm)
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Paketleme Şekli
- Bulk
- Paket Miktarı
- 200
