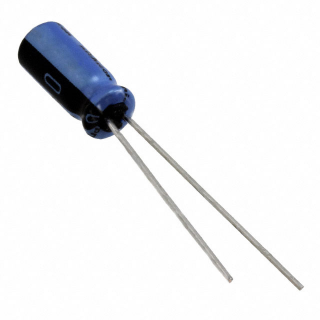

Beryl ME1E220
CAP ALUM 22UF 20% 25V RADIAL
22µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
- Üretici
- Beryl
- Üretici Parça Numarası
- Entegreci Parça Kodu
- Paketleme
- Cut Tape (CT)
Datasheet ve Belgeler
Teknik Özellikler
- Capacitance
- 22µF
- Tolerance
- ±20%
- Voltage - Rated
- 25V
- Lifetime @ Temp.
- 1000 Hrs @ 105°C
- -40°C ~ 105°C
- Polarization
- Polar
- Applications
- General Purpose
- Ripple Current @ Low Frequency
- 145mA @ 120Hz
- Ripple Current @ High Frequency
- 261mA @ 100kHz
- Size / Dimension
- 0.197" Dia (5.00mm)
- Height - Seated (Max)
- 0.433" (11.00mm)
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Paketleme Şekli
- Cut Tape (CT)
